Mini Pot™ ‘MN’ Series

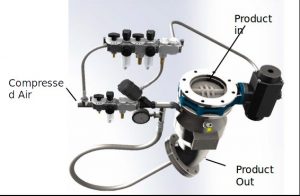

The IBS range of Low Volume Pneumatic Conveyors includes the ‘Mini Pot™’. The Mini Pot is a very simple, low volume, economical dense phase conveying system ideally suited to small scale transfer applications for fine, coarse and granular materials.
The MN series mini-pot is manufactured in three sizes, offers a single slug material flow using plant compressed air. The unit has the capability to handle friable and abrasive materials. This series provides low cost operation and simple PLC controls, which also enables the unit to be set up to provide continuous or intermittent cycle.
The major advantages of this system are:
- Use of plant air for conveying (minimum 2 bar)
- Low cost installation and operation
- Conveying capacity up to 5,000kg/hr
- Reduced maintenance due to minimal moving parts
- Simple PLC controls
- Capable of handling fluidised, friable or abrasive materials
Mini-Pot Applications:
- Bag house dust Lime
- Calcium carbonate Limestone
- Carbon black
- Activated carbon
- Cement
- Fly-ash
- Lime
- Limestone
- PVC resin
- Soda ash
- Sugar
- Talc
Mini-Pot Features include:
| Function: | Single slug conveying |
| Max Pressure: | 200 kPa |
| Flow Rate: | Variable (up to 4 t/h) |
| Features: | Design to ASMA code section VIII Div.1 or Unfired pressure vessel code AS 1210 – 1974 |
| Valves: | Butterfly valve c/w pneumatic actuator, solenoid and limit switches |
